TGE320

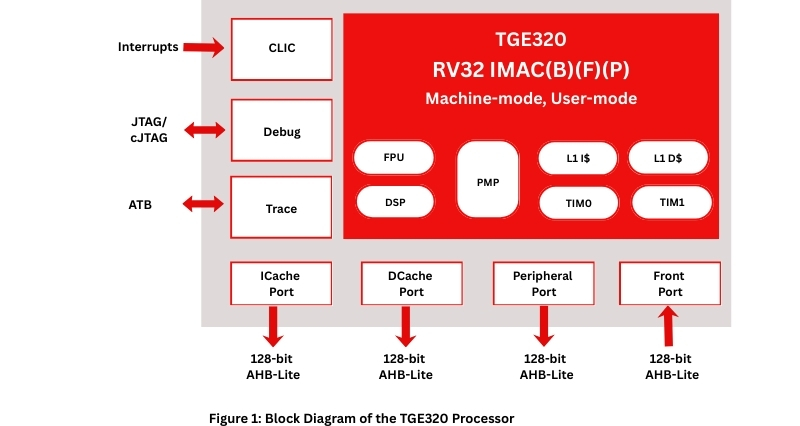

Description

A low power, high-performance 32-bit RISC-V embedded general-purpose processor. Support for RV32P extension, Zicbom cache operation extension and Smepmp security extension.







Features

  • ISA: RV32 IMAC(B)(F)(P) with Zicsr, Zifencei, Zicbom support
  • Modes: Machine-Mode, User Mode
  • Pipeline: 3-stage pipeline|
  • FPU: Optional FPU (Floating-Point Unit) supports single precision floating point
  • DSP: Optional DSP (Digital Signal Processing) unit supports SIMD (Single Instruction Multiple Data) instruction
  • Security: Supports Smepmp. Optional PMP (Physical Memory Protection) with configurable regions from 0 to 16
  • L1 I$: L1 I$ (L1 Instruction Cache) size is configurable from 4KB to 128KB
  • L1 D$: L1 D$ (L1 Data Cache) size is configurable from 4KB to 128KB
  • TIM: Optional TIM (Tightly-Integrated Memory), TIM0 and TIM1, with configurable size from 0KB to 128MB
  • Interrupt:
    • Supports CLIC (Core Local Interrupt Controller) with up to 496 fast interrupts
    • Supports NMI (Non-Maskable Interrupt)
  • Debug:
    • Debug module supports JTAG/cJTAG port
    • Trigger module supports up to 16 hardware breakpoints
  • Trace: Optional trace module supports RISC-V N-Trace
  • Bus Interface: Three 32-bit AHB-Lite (Advanced High-performance Bus Lite) master interfaces, one 32-bit AHB Lite slave interface
  • CoreMark (CoreMarks/MHz): 4.45
  • Dhrystone-Legla (DMIPS/MHz): 1.74

Applications

TGE320 can be applied to industry, consumer electronics markets, etc.



Deliverables

  • IP Package
  • Synthesizable RISC-V CPU IP core
  • Simulation Environment with test case demo
  • IP User Manual/ Integration Manual/ Simulation Manual/ Functional Safety Manual (if support)
  • FPGA Development Board Support Package
    • FPGA board
    • User manual
    • Online technical support
    • Offline technical support
  • IDE Package
    • IDE (Windows + Linux versions)
    • User guides
    • Pre-built tool suite
    • Pre-built project demos
    • Automated debug and trace process
  • Toolchain Package
    • GCC13/GCC14-based toolchain
    • Compiler, assembler, linker
    • QEMU simulator
    • GDB debugger
    • Basic libraries
  • SDK
    • MCU SDK  (EMSIS, RTOS support, RTOS interrupt nesting support, etc.) for 32-bit IPs
    • Linux SDK  (Linux OS support) for 64-bit IPs
