GbE (10/100 Base-Tx) PHY IP

Description and Features

Ethernet PHY is an IEEE 802.3u compliant single-port Ethernet physical layer transceiver, and low power consumption transceiver for 10BASE-Te, 100BASE-TX, operation. Through the Giga Media Independent Interface (GMII), the EPHY connects to the Media Access Control Layer (MAC), and on the media side, it provides a direct interface either to Un-shielded Twisted Pair Category 5 Cable(UTP5) for 100BASE-TX Fast Ethernet or UTP5/UTP3 cable for 10BASE-Te Ethernet. The Ethernet PHY employ a low power and high performance CMOS process. It contains the entire physical layer function of 100BASE-TX defined by IEEE802.3u, including the Physical Coding Sub-layer(PCS), Physical Medium Attachment Layer(PMA), Twisted Pair Physical medium Dependent Sub-layer (TP-PMD, 100BASE-TX only). The EPHY also provide a robust auto-negotiation function, utilizing automatic media speed/duplex and protocol selection match. EPHY also support Auto MDI/MDIX function to simplify the network installation.

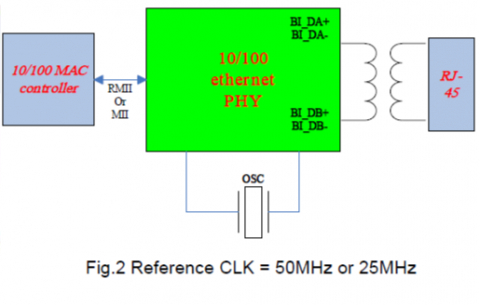

 GbE-10-100-Base-Tx-PHY-IP-supplier-in-china



Features
  • Fully compliant with the IEEE 802.3 / 802.3u
  • 10BASE-Te, 100BASE-TX
  • Interface available to Compliant with TP-PMD standard: ANSI X3.263-1995
  • Compliant with FDDI-PMD standard: ISO/IEC 9314-3: 1990 and ANSI X3.166-1990
  • Support GMII interface to the MAC controller.
  • Serial management interface compliant with IEEE 802.3u (MDIO)
  • Support Full-Duplex or Half-Duplex Operation
  • Support Auto-Negotiation Next Page /Parallel Detection function
  • Compliant with IEEE 802.3u, and Manual configuration is also supported.
  • Automatic Polarity Correction
  • Support auto MDI/MDIX crossover function for 10BASE-Te / 100BASE-TX
  • High performance baseline wander correction (BLW) Circuit
  • High Performance Digital Clock recovery algorithm
  • High performance Digital Equalizer for ISI mitigation
  • LED Driver for Link, Activity, Duplex, Collision, and Speed Status
  • Low Power design, with support 803.2az standard-2010 (EEE)
  • Support MAX 300ppm sampling offset
  • Silicon Proven in UMC 28HPC, UMC 40LP

Deliverables

  • Detailed Datasheet
  • Verilog behavior model (A) for simulation
  • Liberty (db / .lib) for synthesis, STA, and equivalence checking
  • CTL / CTLDB for DFT
  • SPF (Standard Test Interface Language (STIL) Procedure File) for ATPG
  • LEF for APR
  • CDL for LVS connection

Applications

  • Network Interface Adapter
  • Embedded system with an Ethernet MAC that needs a UTP physical connection
  • Such as, STB, IP STB, Fiber IP STB, etc.,
  • Ethernet Hub
  • LANs (Local Area Networks).
  • Sensor and monitoring interfaces.
  • Security and surveillance.
  • Building automation.
  • Transportation systems
