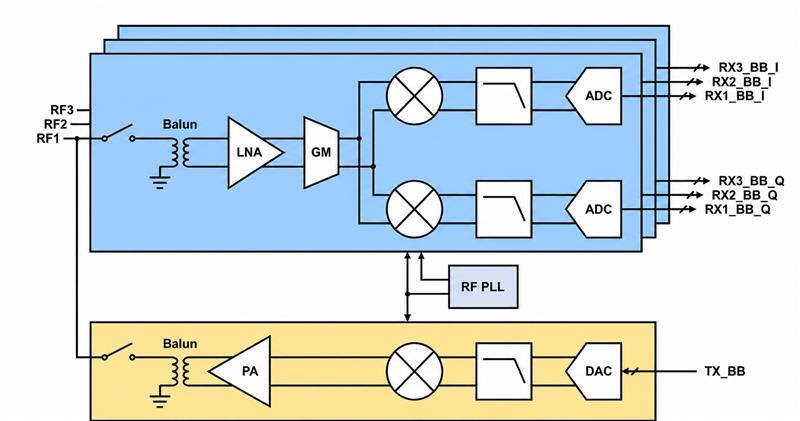

The UWB RF Transceiver IP is a silicon-proven, IEEE 802.15.4/4z compliant High Rate Pulse (HRP) Ultra-Wideband solution designed for high-accuracy ranging, positioning, and secure wireless communication applications. Implemented in TSMC 22nm ULL technology, the transceiver integrates one transmitter (TX), three receivers (RX), and a dedicated RF PLL for local oscillator generation, AD/DA sampling clocks, baseband operation, and MCU system clocks. Its advanced 1T3R architecture enables precise Phase Difference of Arrival (PDoA) measurements within a single ranging frame, making it ideal for next-generation location-aware and sensing applications.
• TSMC 22nm ULL process
• IEEE 802.15.4/4z standard HRP PHY compliant
• Supports ~500 MHz RF bandwidth
• Supports SS-TWR, DS-TWR, PDoA and TDoA
• Supports 62.4 MHz, 124.8 MHz and 249.6 MHz mean PRF
• Supports 110 kbps, 850 kbps, 6.8 Mbps, 7.8 Mbps, 27.2 Mbps and 31.2 Mbps data rates
• Three RF ports
• Integrated on-chip T/R switches and baluns
• Automotive Digital Key
• Real-Time Location Systems (RTLS)
• Asset Tracking & Indoor Navigation
• Industrial IoT & Smart Factories
• Smart Home & Access Control
• Wearables & Consumer Electronics
